Intelligent harging System

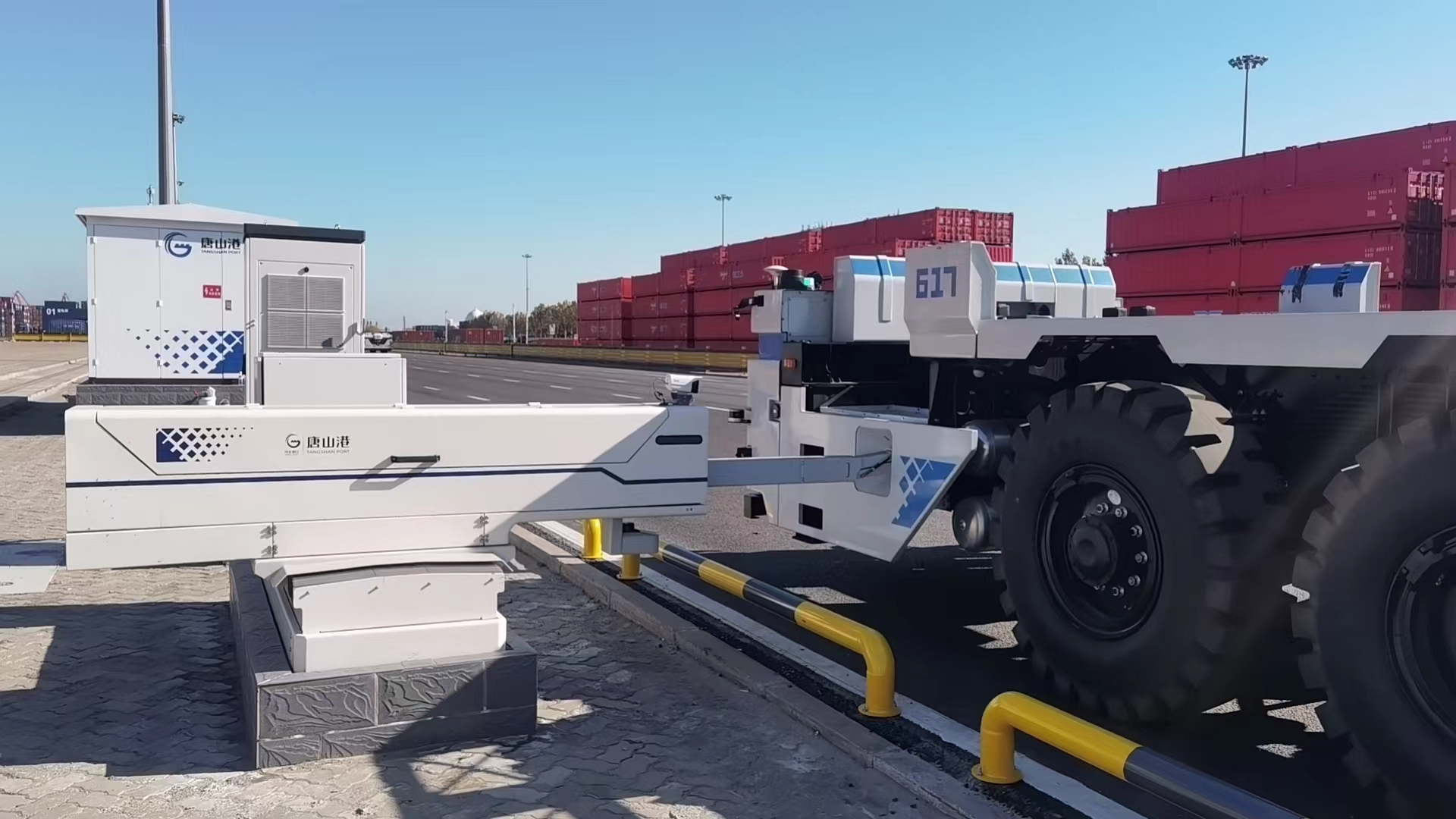

EPDC electric vehicle automatic charging system is a high-power automatic DC fast charging system developed by our company, which is specially used for the charging needs of unmanned vehicles in the unattended field. The product adopts waterproof and dust-proof design, and the protection level can reach IP54, which is suitable for outdoor installation, such as port terminals and other places. The product integrates charging machine, automatic charging robot, human-computer interaction interface, communication and other parts into a whole, using split design, its structure is simpler, performance is more reliable, stable voltage, stable current accuracy is higher, charging efficiency is higher. The product has the characteristics of unmanned intelligent charging, easy installation and commissioning, simple operation and maintenance, and is an ideal choice for outdoor DC fast charging of electric vehicles.

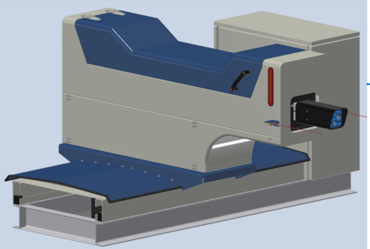

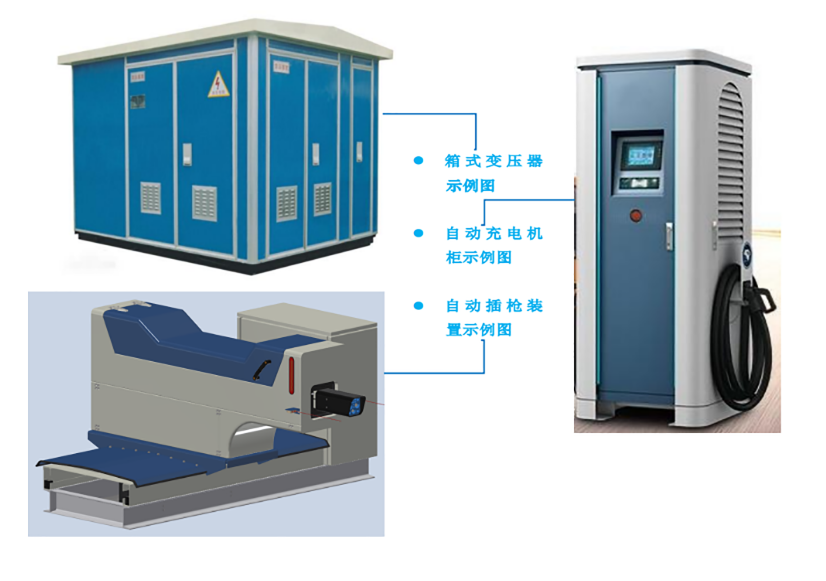

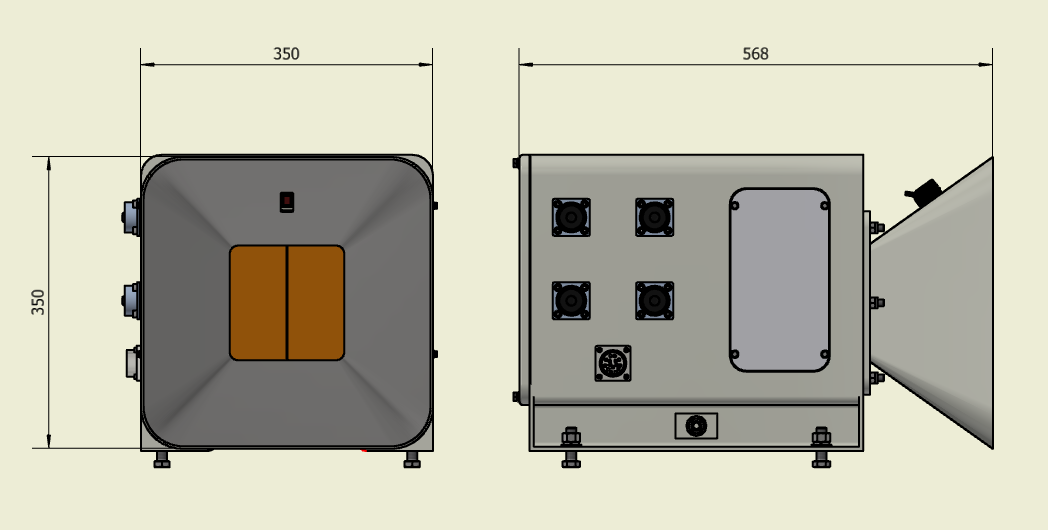

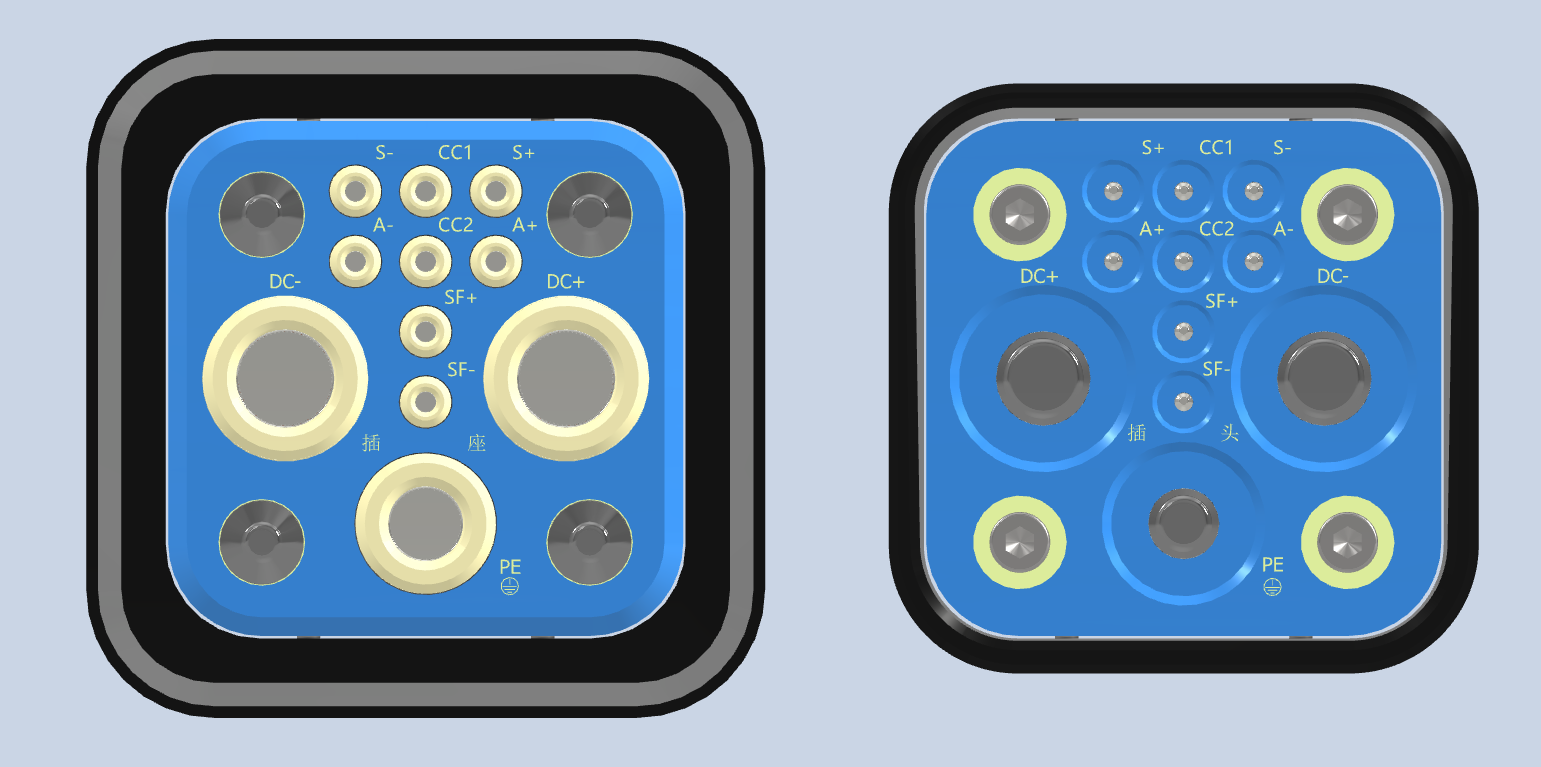

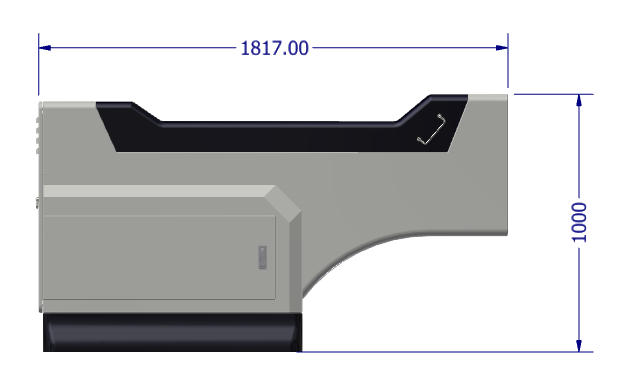

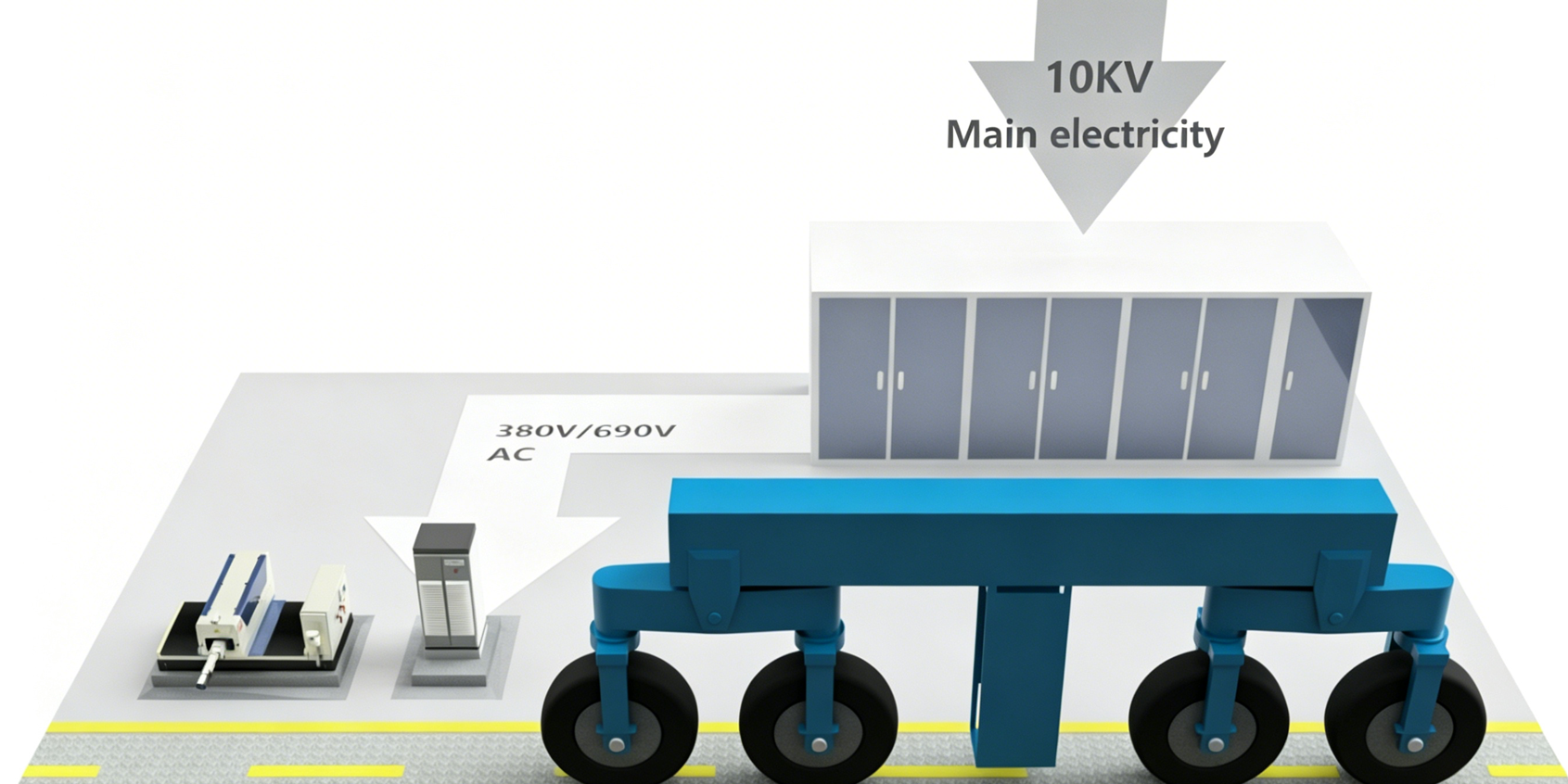

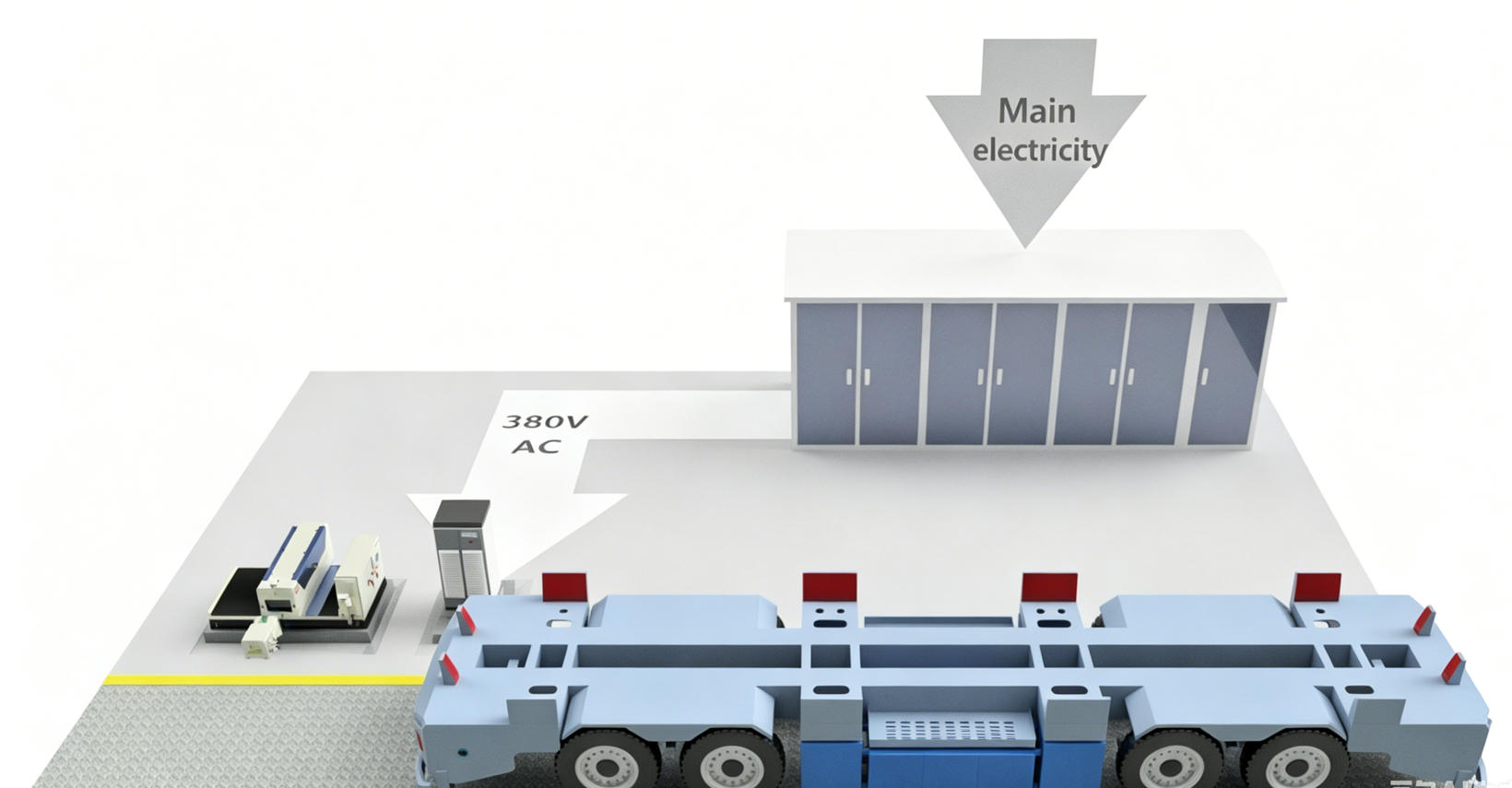

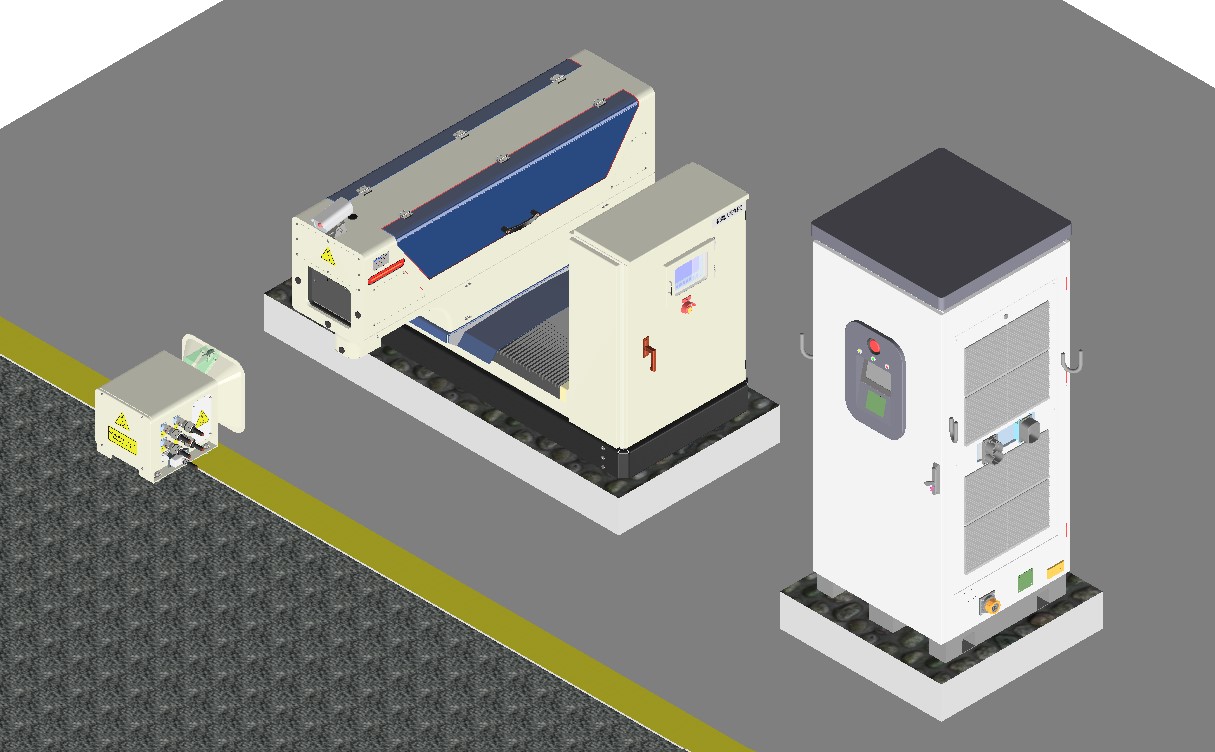

The EPDC electric vehicle charger is mainly composed of box-type transformer, charging cabinet (national standard manual insertion gun) and automatic insertion gun device. The box-type transformer is mainly composed of high-voltage incoming cabinet, dry-type transformer, low-voltage distribution cabinet and other related protection devices. The charging cabinet is mainly composed of monitoring device, charging module, low-voltage components, total control device, etc. The automatic insertion device is mainly composed of control box, plug, expansion mechanism, translation mechanism, automatic addressing system and other protective devices.
