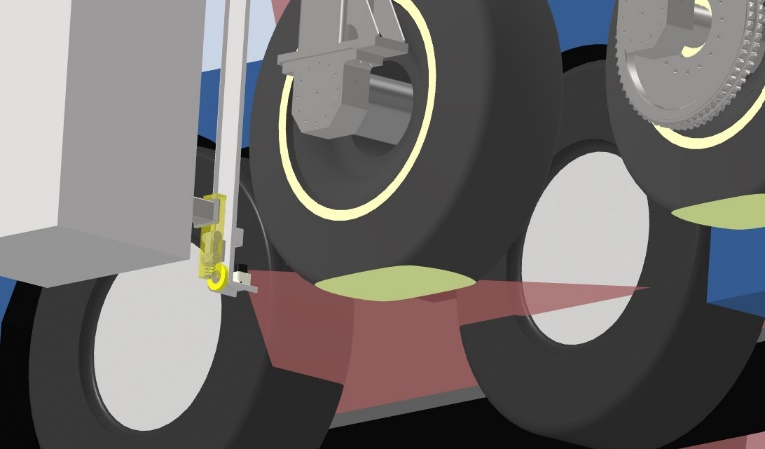

The anti-lifting scanning device is mainly used for detecting the anti-lifting of container spreader in unmanned wharf. Two sets of "line sweep radar" are installed on the mounting bracket of the device, and the first set of "line sweep radar" is installed at the intersection of the container chassis and the collecting platform. The second group of "line sweep radar" is installed at the intersection of the truck tire and the ground; When there is a lifting accident, the first contact surface of the container and the collector will not be separated, and then the second contact surface of the collector tire and the ground will not be separated. These two conditions will form a "Z" shape of the surface, through the "line sweep radar" found and alarm processing. In the limit case, when there is no alarm state, resulting in the tire leaving the ground, the second group of "line sweep radar" will make the final "tire off the ground" alarm.

System advantages:

uLight structure, modular overall, easy to install;

uIt can move up and down, avoid obstacles and improve crossing by itself, and reduce its own loss rate.
