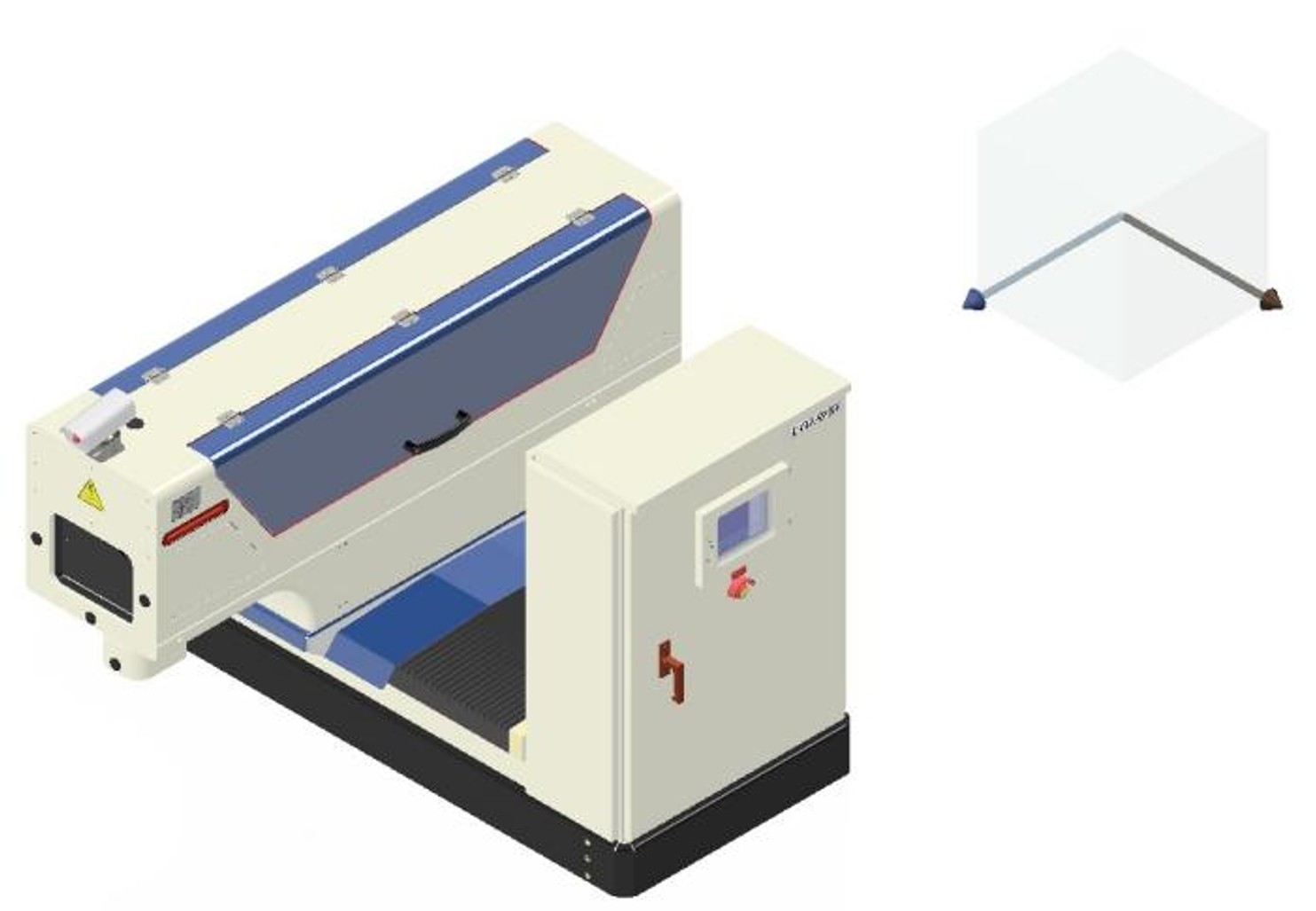

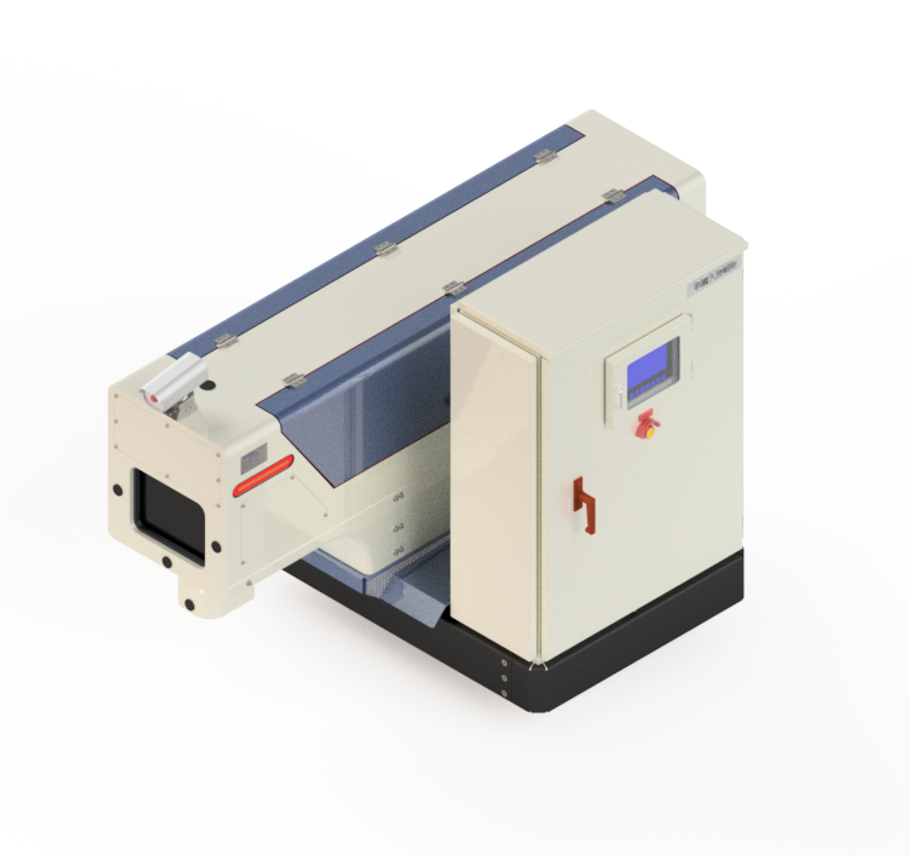

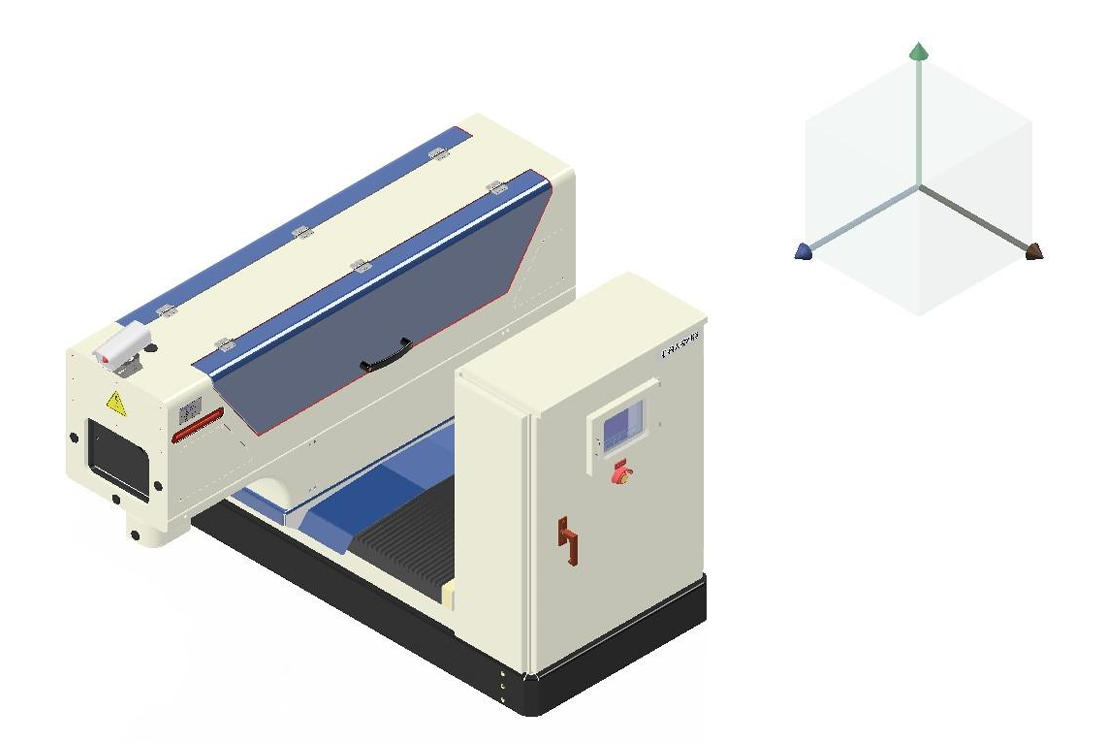

This series of high-power automatic DC fast charging systems is specially designed to meet the charging demands of autonomous vehicles in unattended areas.

Featuring a waterproof and dustproof design with a high protection grade, the product is suitable for outdoor installation.

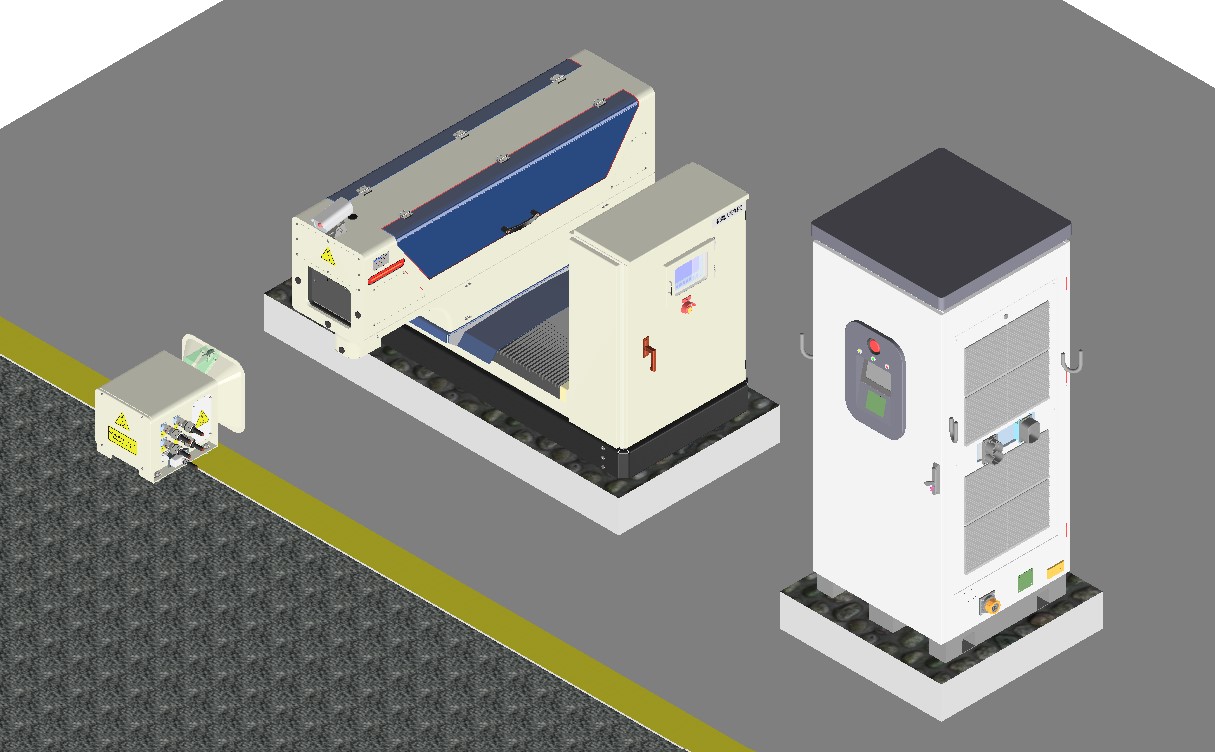

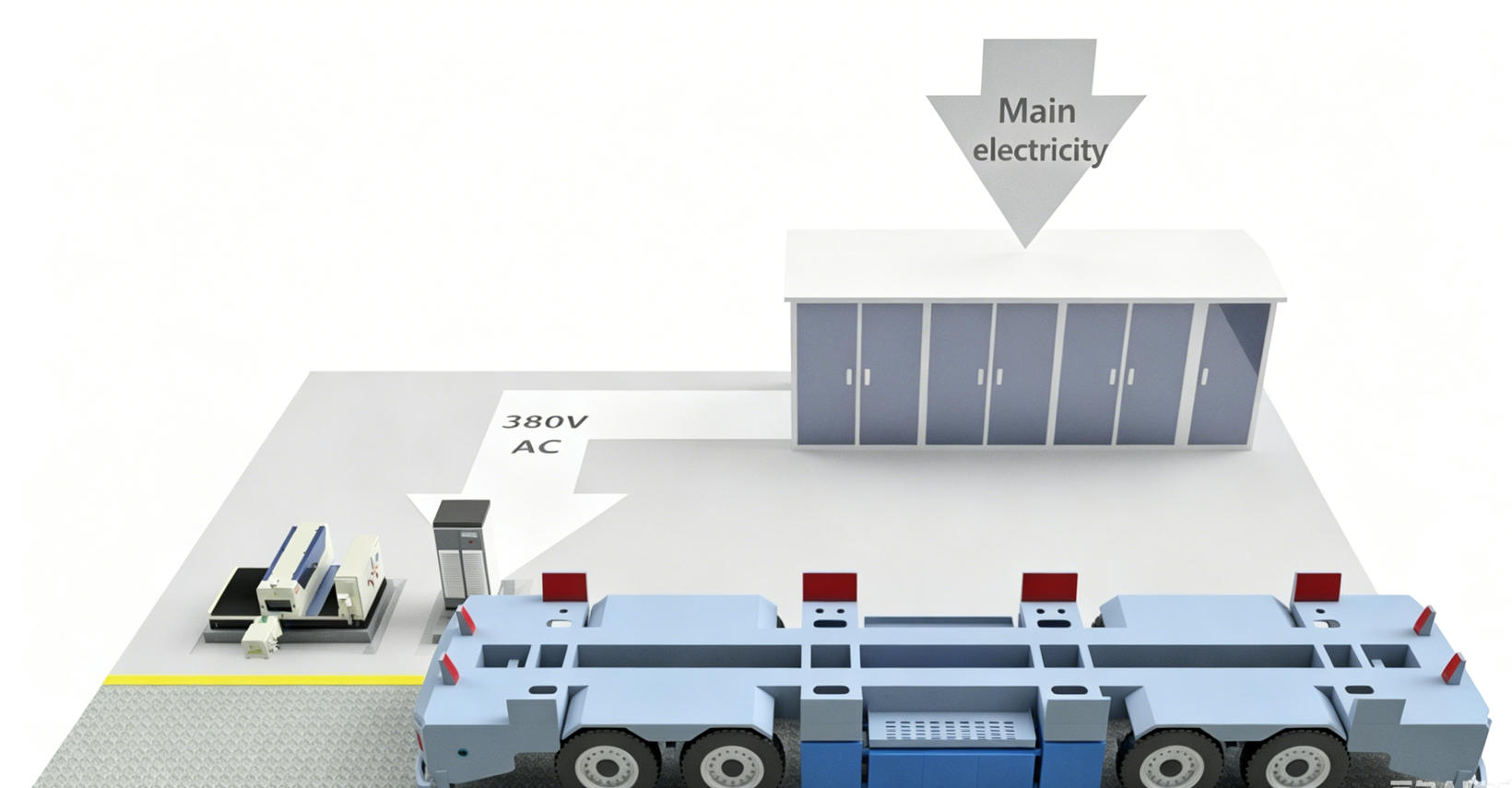

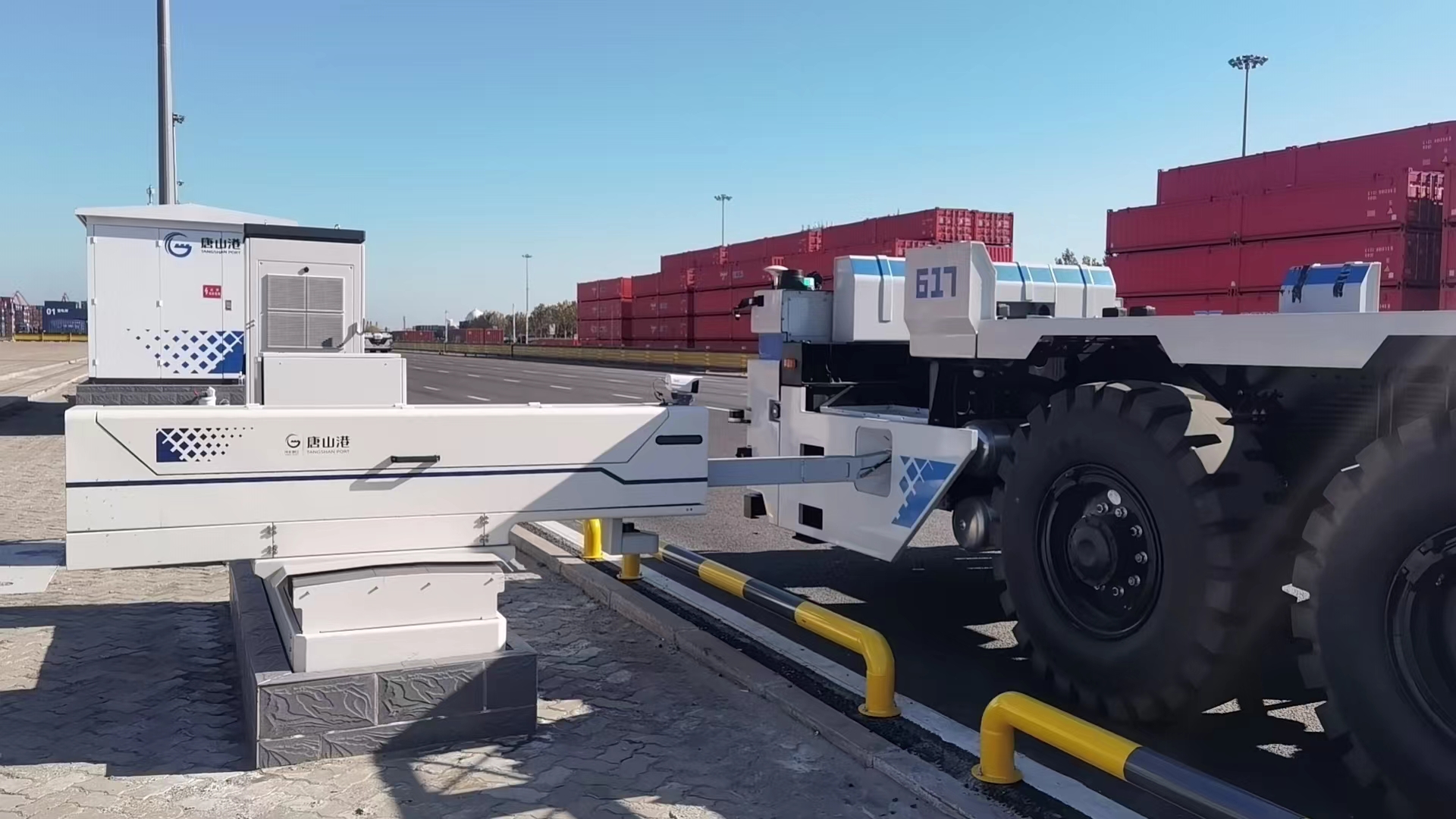

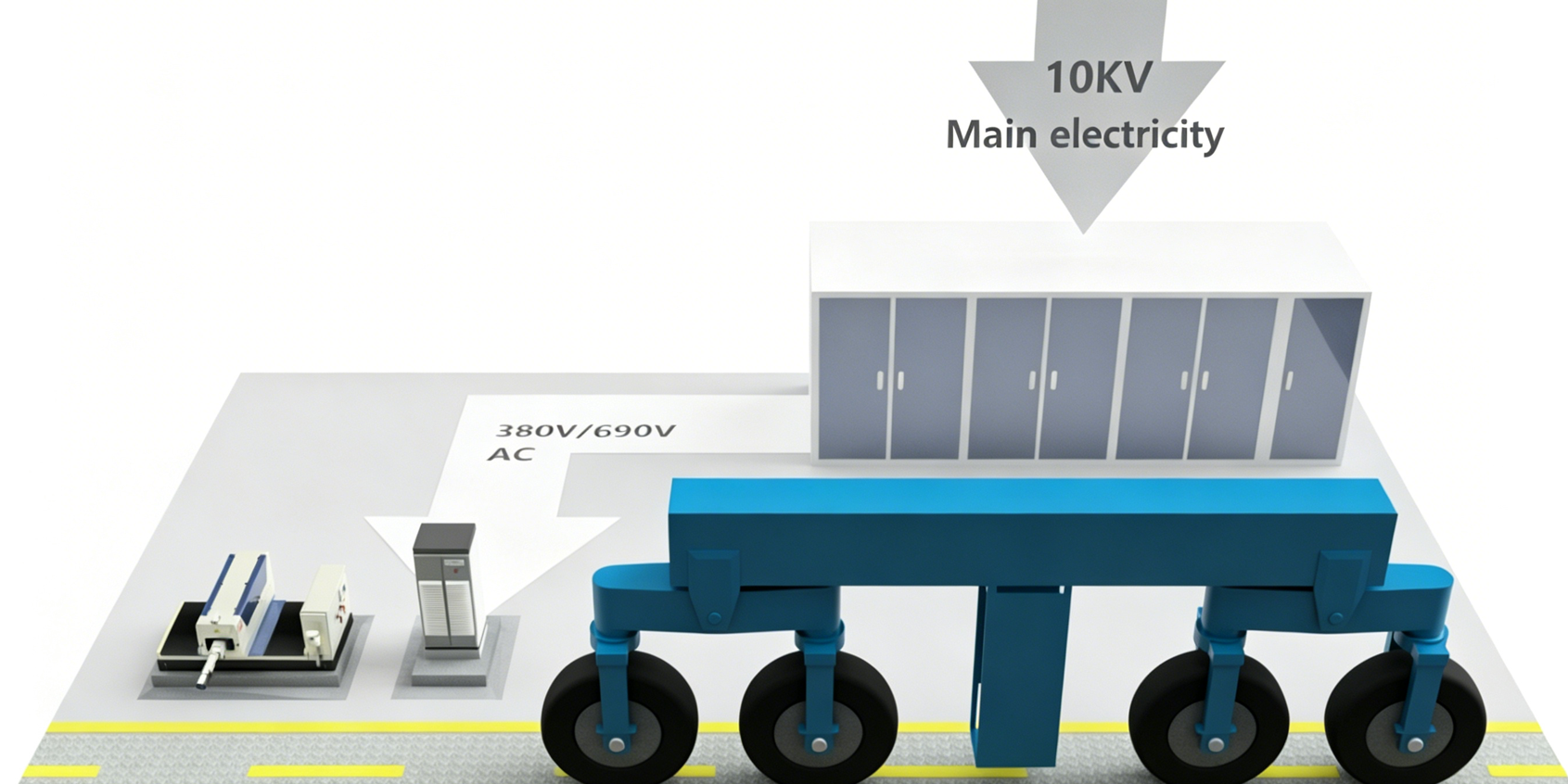

This customizable series boasts enhanced applicability and supports fixed installation in airports, terminals, logistics sites, etc.

Automatic vehicle ID & charging port recognition with positioning guidance

Structure & pin layout: DC positive, negative, PE and other contacts (DC+/DC-/PE/A+/A-/S1/S2/CC1/CC2)

Flat pin arrangement minimizes telescopic stroke, increasing vehicle-to-charger safety distance

Curved creepage routing & sufficient electrical clearance, minimal interference from rain and condensation

Short movable lever of telescopic arm with low bending moment, no sagging even at extended stroke

Flexible connection withstands accidental disconnection; distributed contacts ensure ample allowance

Flat pin arrangement reduces on-board charging inlet space for easier installation and improves protection reliability in harsh weather

Independent contact pins eliminate the risk of accidental pin contact

Integral sealed structure for dust & water resistance; modular design for easy replacement

Multiple safety protections: ground and on-board units operate independently or interconnect with central control

Cycle life: > 100,000 cycles

Automatic plug insert ≤ 15s & withdrawal ≤ 5s, cutting vehicle docking time and boosting continuous charging efficiency

Compliant with the CE and new GB standard GB/T 20234-2015
